Material: Aluminium 6082 & treated Steel
Treatment: Gunmetal anodizing and burnishing
Bolts: excluded
Spring's Code D12000: to be ordered separately

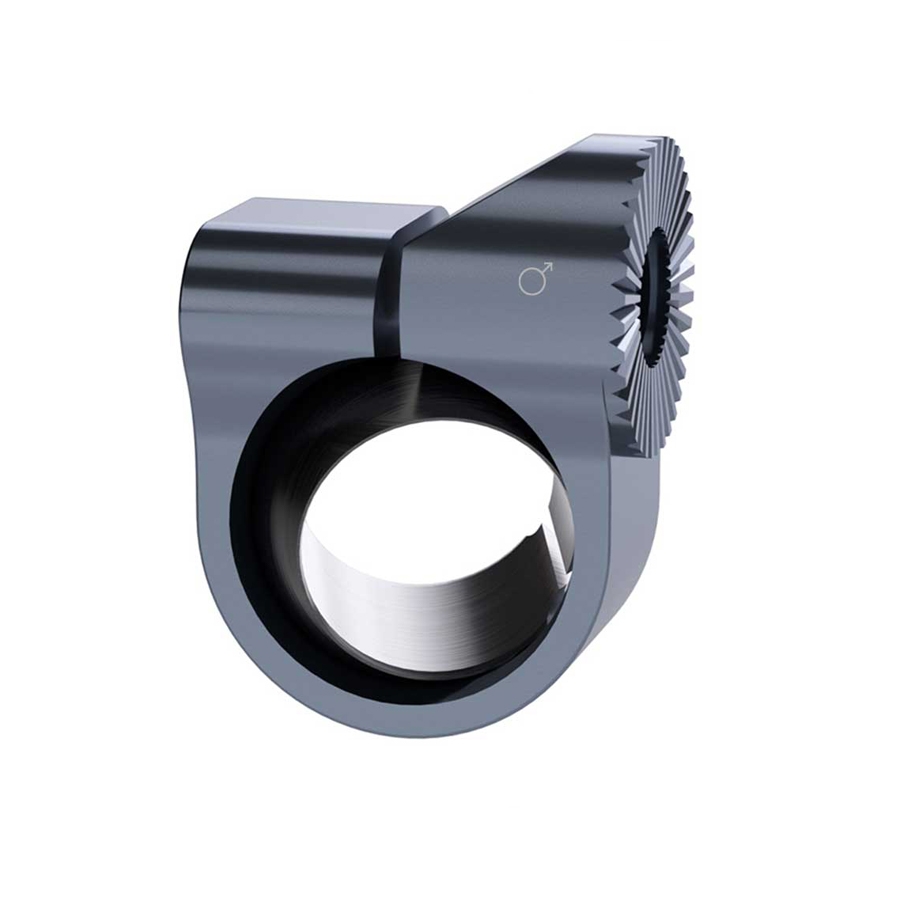

Fixed male gear bracket with swiveling steel ball
DMS
Product image
Disegno tecnico
Dati tecnici
| COD. | A | B | C | ØD | I | I1 | O | Weight (kg) |
| DMS30 | 49,5 | 35 | 66 | 30 | 25,5 | 25 | 8,5 | 0,16 |
| DMS28 | 49,5 | 35 | 66 | 28 | 25,5 | 25 | 8,5 | 0,17 |
