Material: Aluminium 6082
Treatment: Gold and gunmetal anodizing
Bolts: included

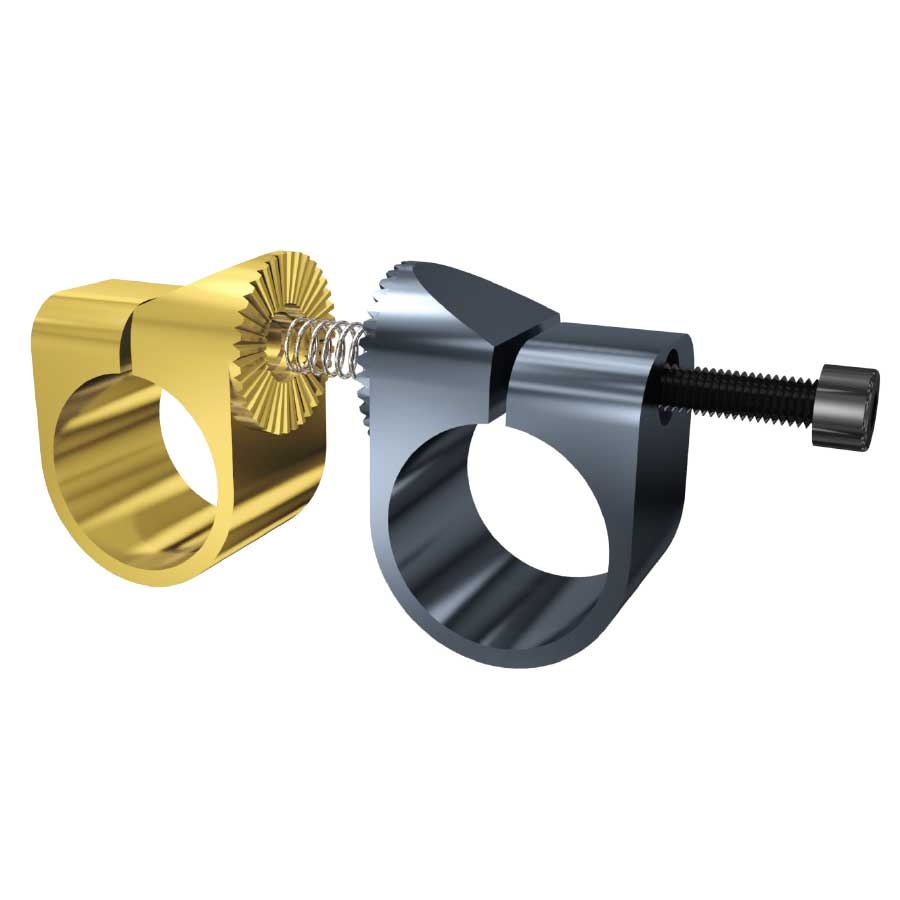

Product image
Technical drawing
Technical data
| COD. | A | B | C | C1 | ØD | ØD1 | I | I1 | I2 | Weight (kg) |
| DM25DF25 | 78 | 35 | 56 | 56 | 25 | 25 | 41 | 20 | 20 | 0,190 |
| DM25DF28 | 78 | 35 | 56 | 56 | 25 | 28 | 41 | 20 | 20 | 0,190 |
| DM25DF30 | 78 | 35 | 56 | 56 | 25 | 30 | 41 | 20 | 20 | 0,180 |
| DM28DF30 | 78 | 35 | 56 | 56 | 28 | 30 | 41 | 20 | 20 | 0,170 |
| DM30DF30 | 78 | 35 | 56 | 56 | 30 | 30 | 41 | 20 | 20 | 0,160 |
| DM40DF25 | 88 | 35 | 66 | 56 | 40 | 25 | 46 | 25 | 20 | 0,205 |
| DM40DF28 | 88 | 35 | 66 | 56 | 40 | 28 | 46 | 25 | 20 | 0,195 |
| DM40DF30 | 88 | 35 | 66 | 56 | 40 | 30 | 46 | 25 | 20 | 0,185 |
| DM40DF40 | 98 | 35 | 66 | 66 | 40 | 40 | 50 | 25 | 25 | 0,210 |
