Material: Aluminium 6082
Treatment: Gunmetal anodizing
Bolts: excluded
Spring's Code D12000: to be ordered separately

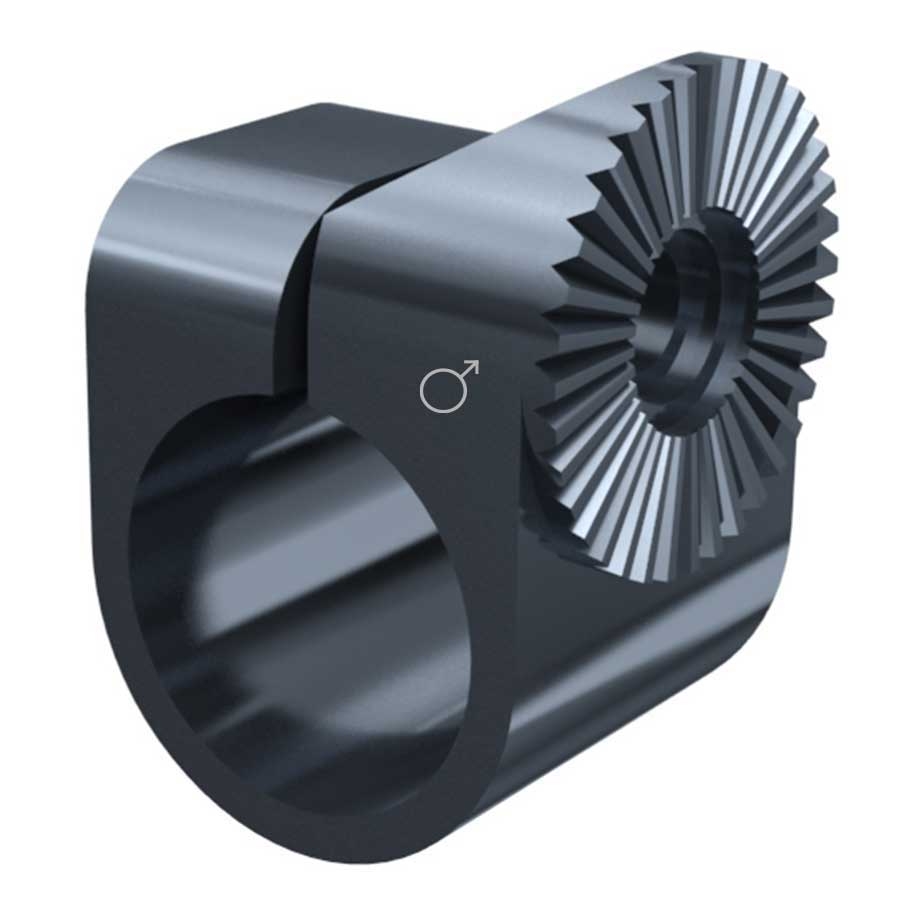

Product image
Technical drawing
Technical data
| COD. | A | B | C | ØD | I | I1 | O | Weight (kg) |
| DM25 | 39,5 | 35 | 56 | 25 | 21 | 20 | 8,5 | 0,100 |
| DM28 | 39,5 | 35 | 56 | 28 | 21 | 20 | 8,5 | 0,090 |
| DM30 | 39,5 | 35 | 56 | 30 | 21 | 20 | 8,5 | 0,080 |
| DM40 | 49,5 | 35 | 66 | 40 | 25,5 | 25 | 8,5 | 0,105 |
