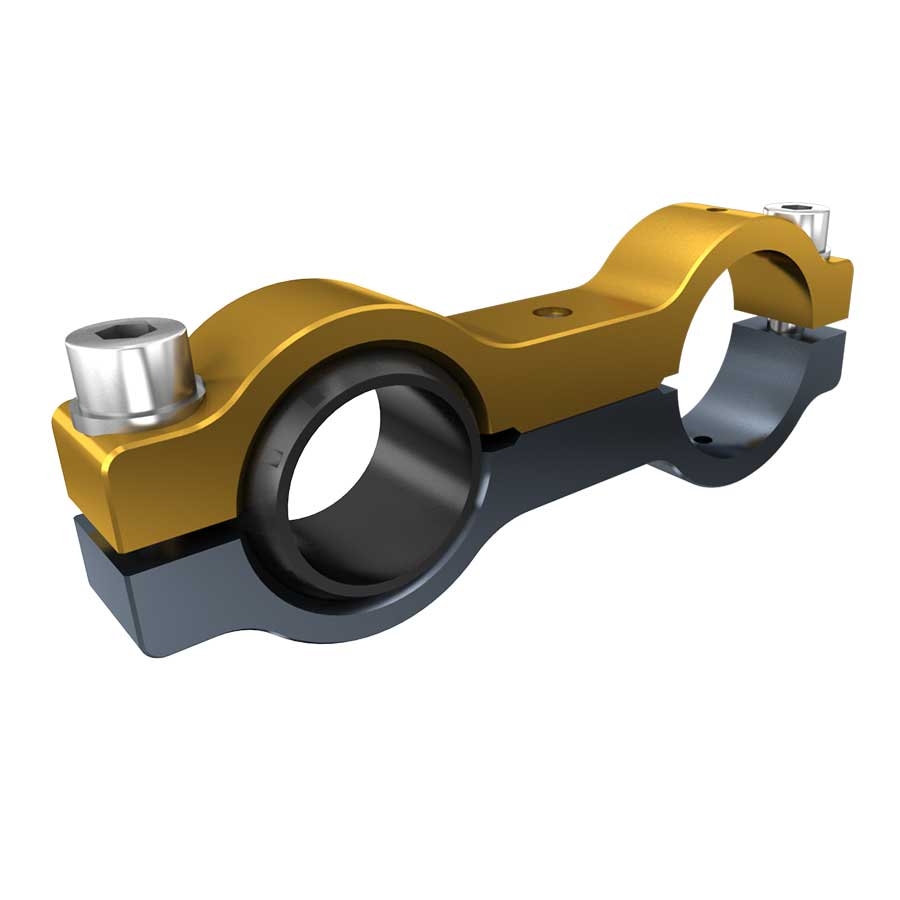

Product image

SAPKO

Material: Aluminium 6082
Treatment: Gold and gunmetal anodizing
Bolts: Included

Technical drawing

Technical drawing

Technical data

COD. A B B1 C C1 ØD ØD1 I Weight (kg)
SAPKO25-30 142 20 25 48 42 25 30 80 0,22
SAPKO25-40 146 20 25 48 52 25 40 80 0,22
SAPKO28-25 139  20 25 48 36 28  25  80 0,22
SAPKO28-30 142 20 25 48 42 28 30 80 0,21
SAPKO28-40 146 20 25 48 52 28 40 80 0,21
SAPKO30-25 139 20 25 48 36 30 25 80 0,22
SAPKO30-30 142 20 25 48 42 30 30 80 0,21
SAPKO30-40 146 20 25 48 52 30 40 80 0,20
SAPKO40-40 151 20 25 60 52 40 40 80 0,19

Application example

Application example
